SPECIFICATIONS

AI Functions: Human Detection

Alarm Action: FTP Photo,telefon Alarm,Email Photo,Local Alarm

App name: other

Audio In/Out: Built-in microphone and speaker

Audio Output: Two Way Audio

Auto Tracking: Yes

Brand Name: Reolink

Certification: CE,FCC,RoHS,weee

Color: WHITE

Color Night Vision: Yes,Yes

Connectivity: WIFI(Dual-Band)

DC Power: DC 12V/2A, <24W

Dimensions: 373x177x140mm (Ceiling Mount)

Dimensions (L x W x D)(mm): 373*177*140mm (Pendant Mount)

FTP: Yes

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP66

IR Distance(m): 60Metres

Image Sensor: 1/2.8" CMOS sensor

Infrared Night Vision: Up tp 60 meters(196ft)

Installation: Side,Normal,Wall Mounted,Pendant Mount

Internal Storage: None

Lens: f=2.7-13.5mm/Max F1.6

Lens (mm): 2.8mm

Lens Quantity: Single Lens

Local storage: Max. 512 GB (Micro SD card)

Megapixels: 8MP

Minimum Illumination(Lux): 100

Model Number: RLC-823S1W

Movement Range(Pan): 0°-360°

Movement Range(Tilt): -10°-180°

Network: One 10M/100Mbps RJ45

ONVIF: Yes

Operating Humidity: 10% ~ 90%

Operating Temperature: -10°-60°,-10°C~+55°C (14°F~131°F)

Optical Zoom: other

Origin: Mainland China

PT Angle (Max.): Pan: 360°, Tilt: 90°

Pan Speed: 1.4°-180°/s (configurable)

Power Consumption(W): <24W

Power Mode: Mains Electricity

Power Source: Normal

Power Supply: Normal

Power Supply(V): DC12V/2A

Rechargeable Battery: None

Record Mode: Motion-triggered recording (default); scheduled recording, 24/7 recording

Resolution: 3840x2160(8 Megapixels)@25FPS

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Omnivision

Shell Material: Metal

Smart Alarm: Motion detection; person/vehicle/animal detection

Smart Home: Google Assistant; Alexa

Smart home platform: alexa,Google Assistant

Special Features: Waterproof / Weatherproof

Style: PT Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Mac OS,Windows 10

TF Card: None

Tilt Speed: 1.4°-56°/s (configurable)

Time Lapse: Yes

Two-way audio: Yes

Video Compression: H.265/H.264

Video Compression Format: H.264,H.265

Viewing Angle : 100°

Weight: 2.34kg

Zoom: 4X,5X optical zoom & 10X digital zoom

Zoom type: Optical zoom

is_customized: No

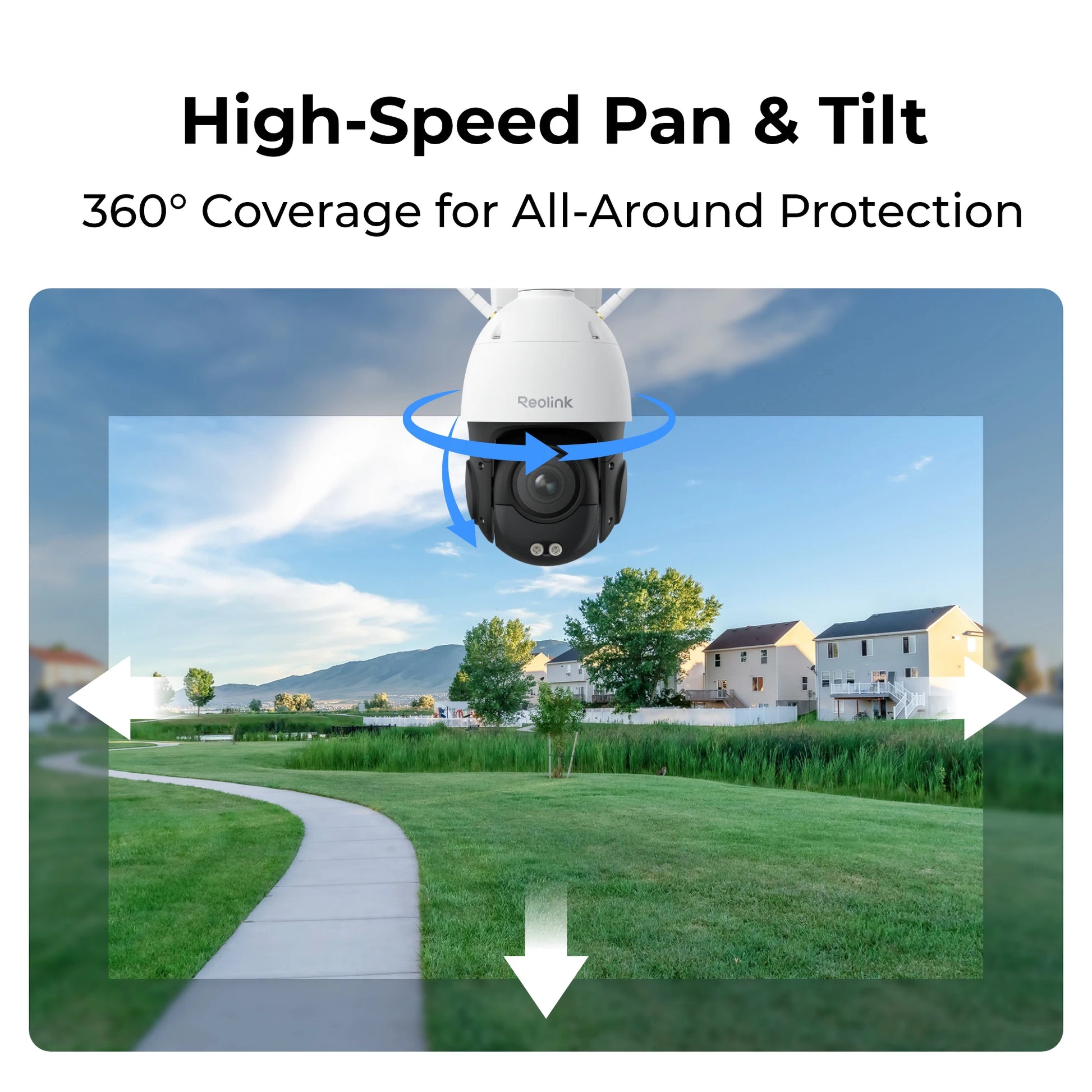

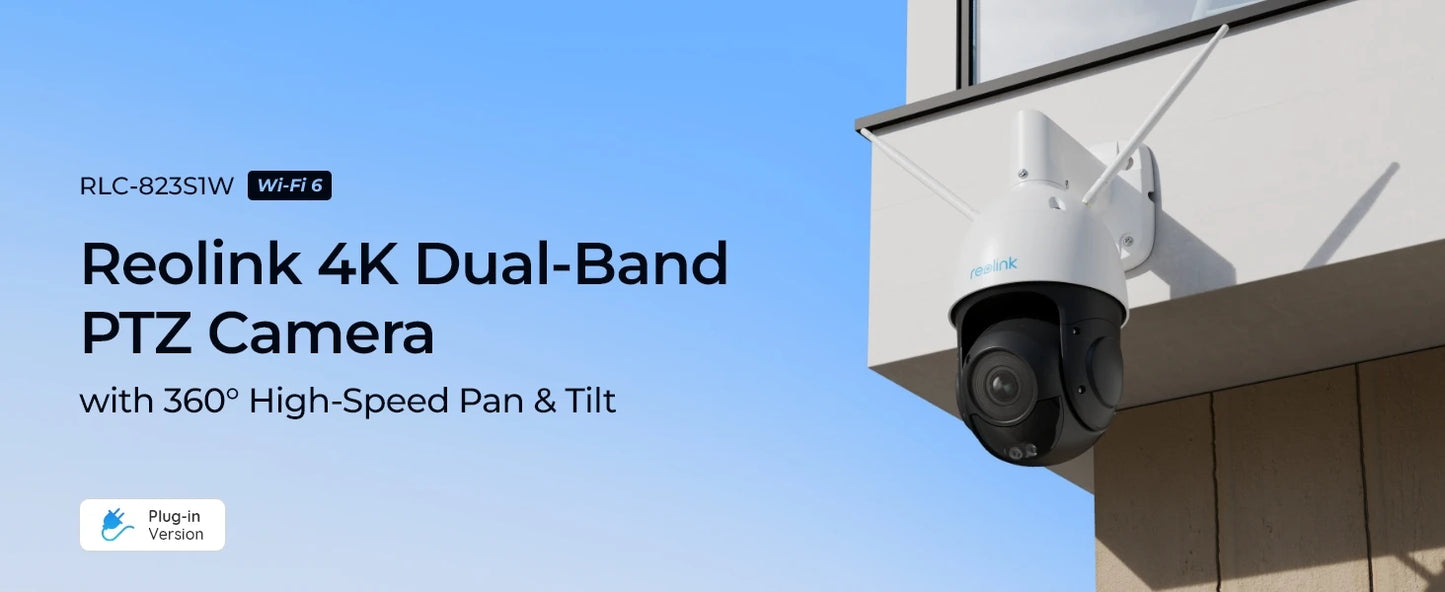

See All-Around with 360° Coverage

Experience complete surveillance from 360° pan and 90° tilt capabilities, complemented by adjustable motor speeds for precise control.

Auto Tracking

Once a person/vehicle/animal is detected, the camera will follow and keep it in sight for however it remains within the area, so you won't miss anything important.

The World Unfolds in Sharp Focus

Coming with a 5X optical zoom lens, the camera can capture sharper close-ups from farther away.

Smart Detection

Accurately detect person/vehicle/animal movements for you, greatly reducing false alarms.

Customized Motion Zone

Decide which motion zone will be detected. You won't receive alerts from the areas you have erased.

Dual Warnings

Motion-triggered spotlights and custom siren will be activated to warn off intruders and alert you.

Two-Way Audio

Camera built-in mic and speaker, you can engage in real-time conversation.

Wi-Fi Security System,Easy Setup

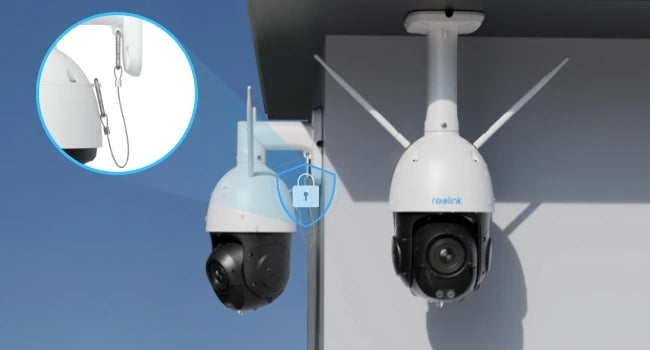

Benefited by the next-gen 2.4/5GHz Wi-Fi 6 tech Network, and equipped with crafted mounting brackets, this camera can be easily installed on the ceiling or wall, no network cable required.

See Through the Darkness

Camera features Color/Black & White Night Vision, catering to your diverse preferences.

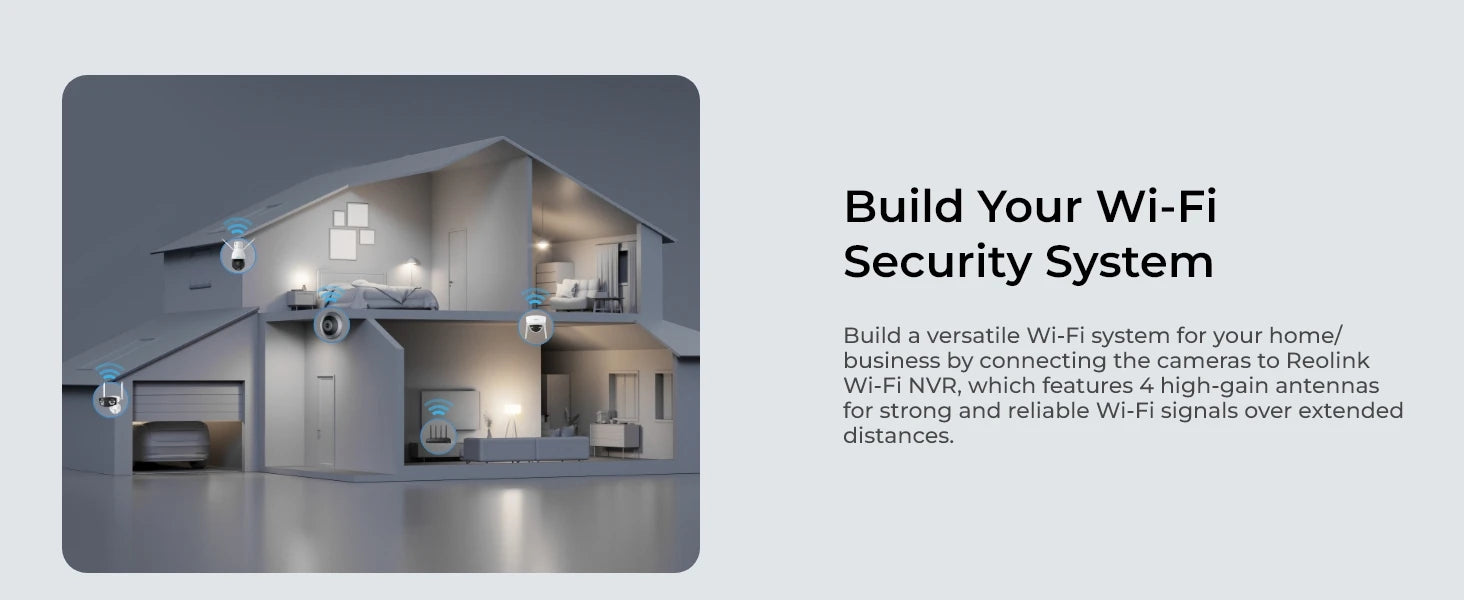

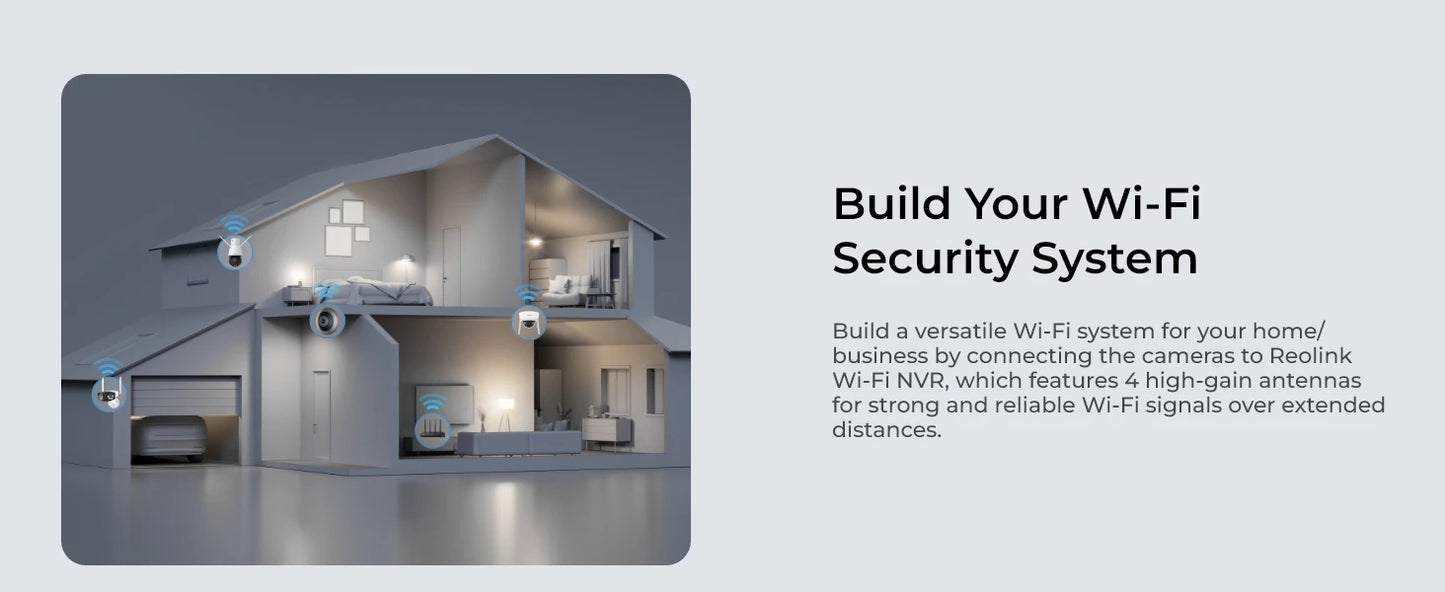

DIY Your Security System

Build your personalized security setup with a variety of options provided by Reolink.

Remote Camera Access, No Subscription Needed

Supports max.12 devices to live stream at the same time (2 mainstreams & 10 substreams).

Stunning Time-Lapse Videos

Condense an entire day's events into captivating minutes. Enjoy mesmerizing transformations.

Versatile Storage Options

Camera supports 24/7 continuous, motion-triggered, or scheduled recording. Store footage on a microSD card, Reolink NVR, or FTP server.
