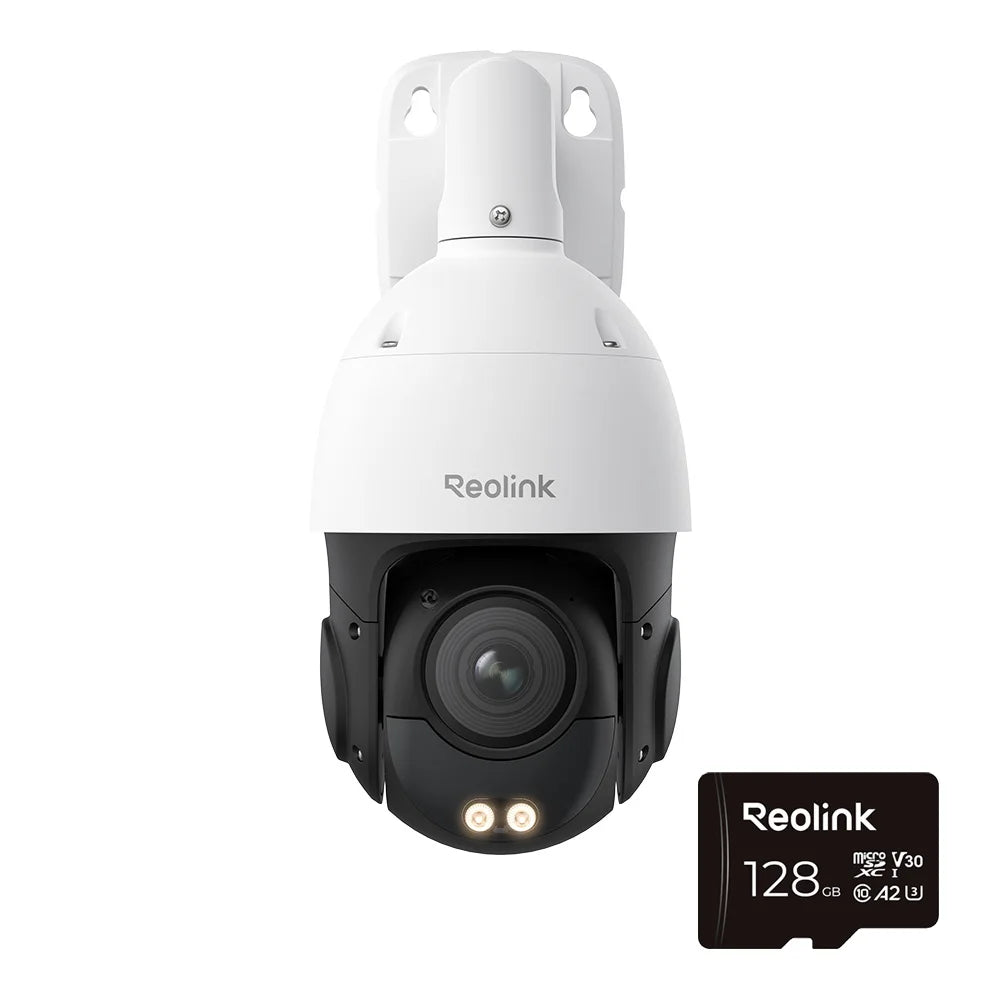

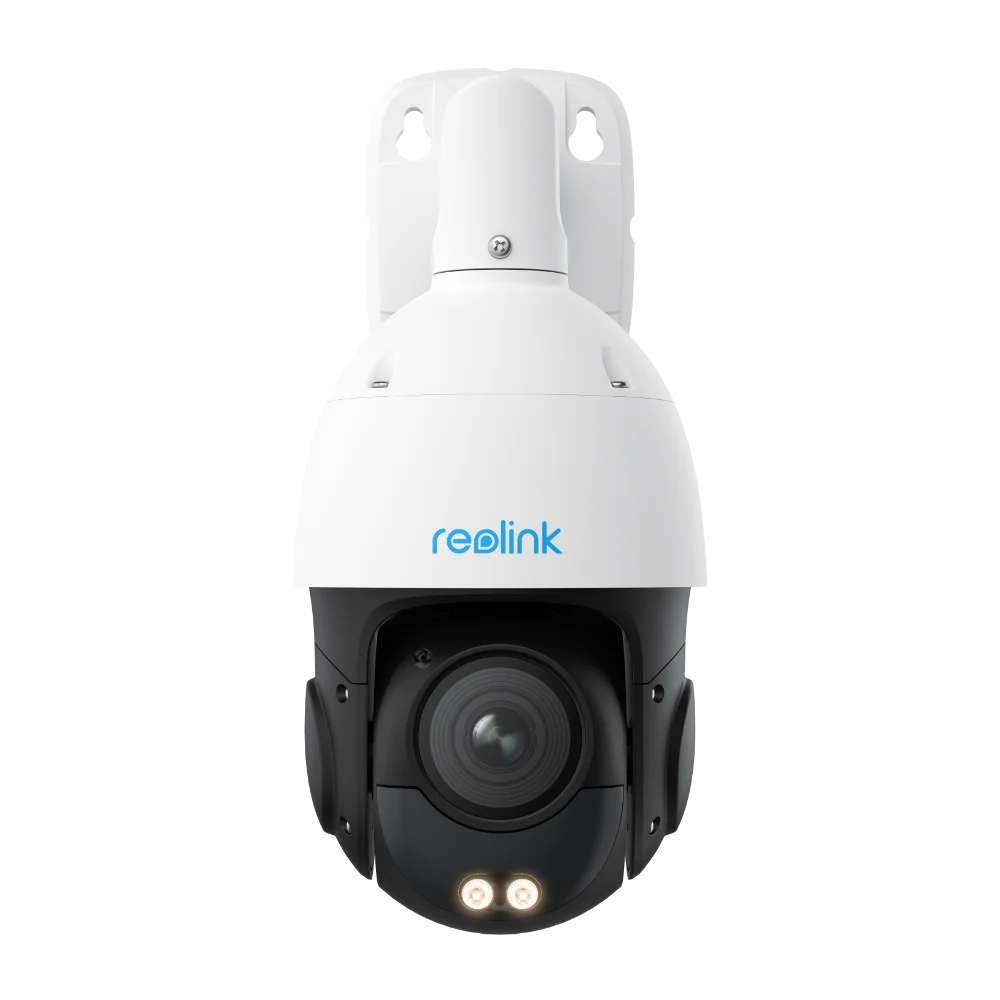

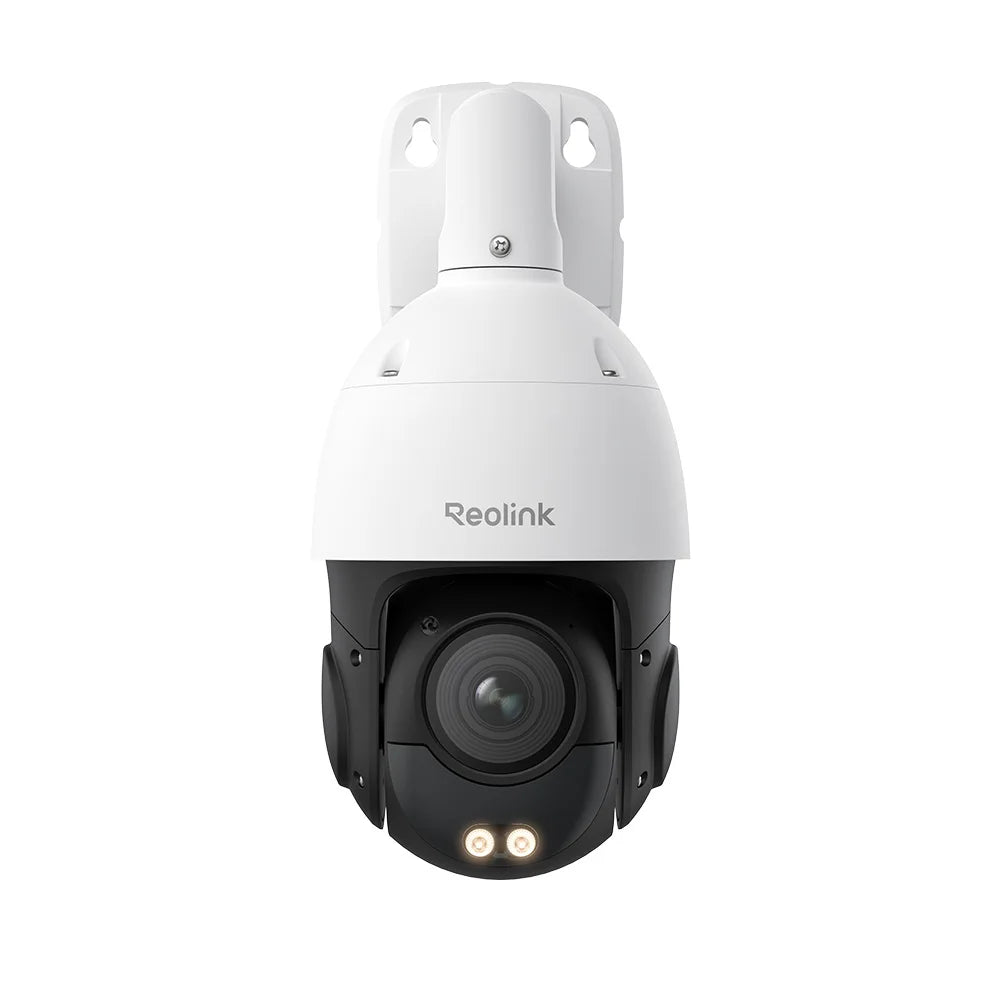

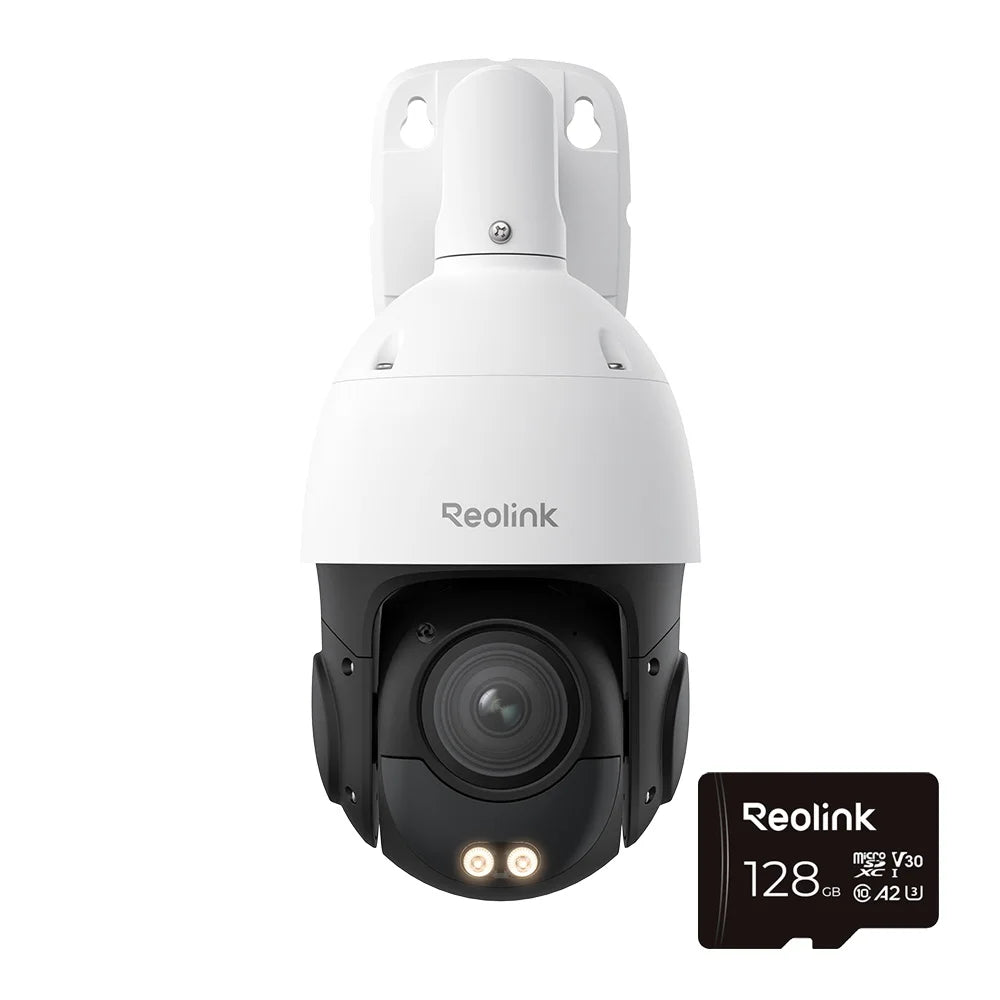

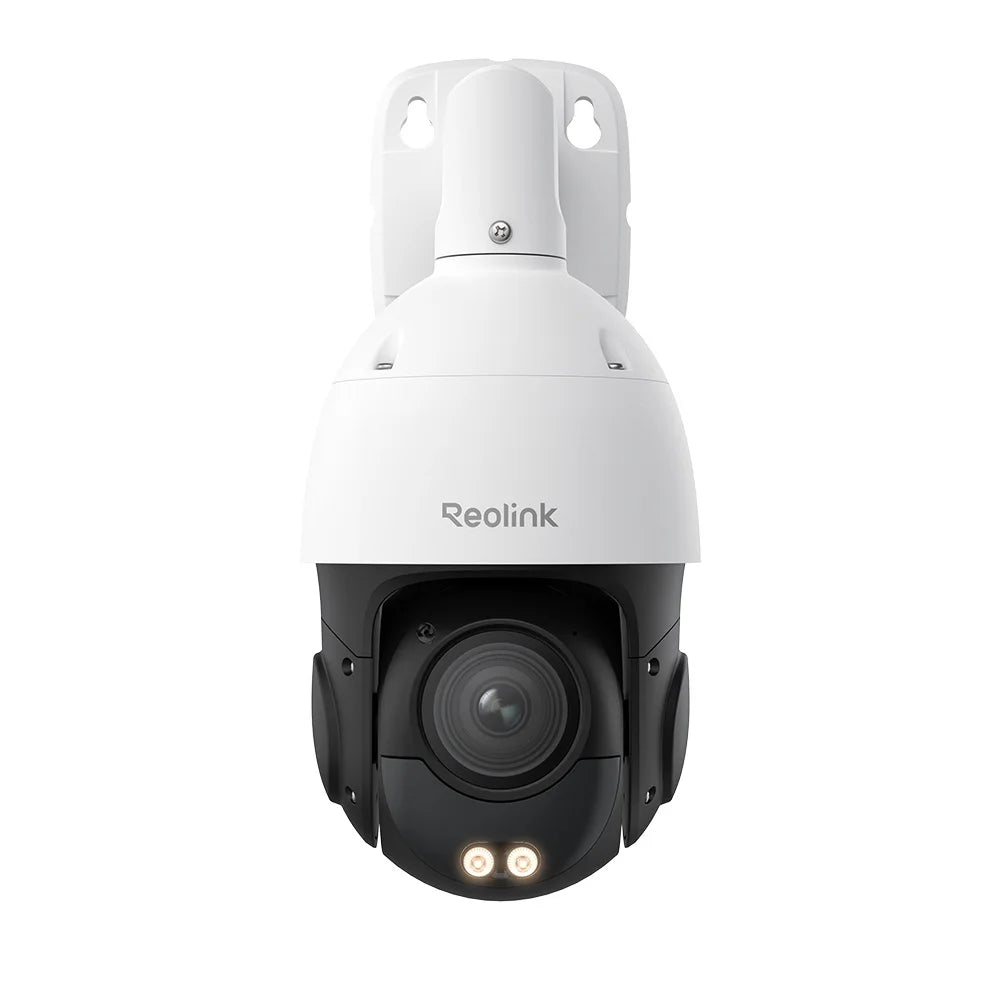

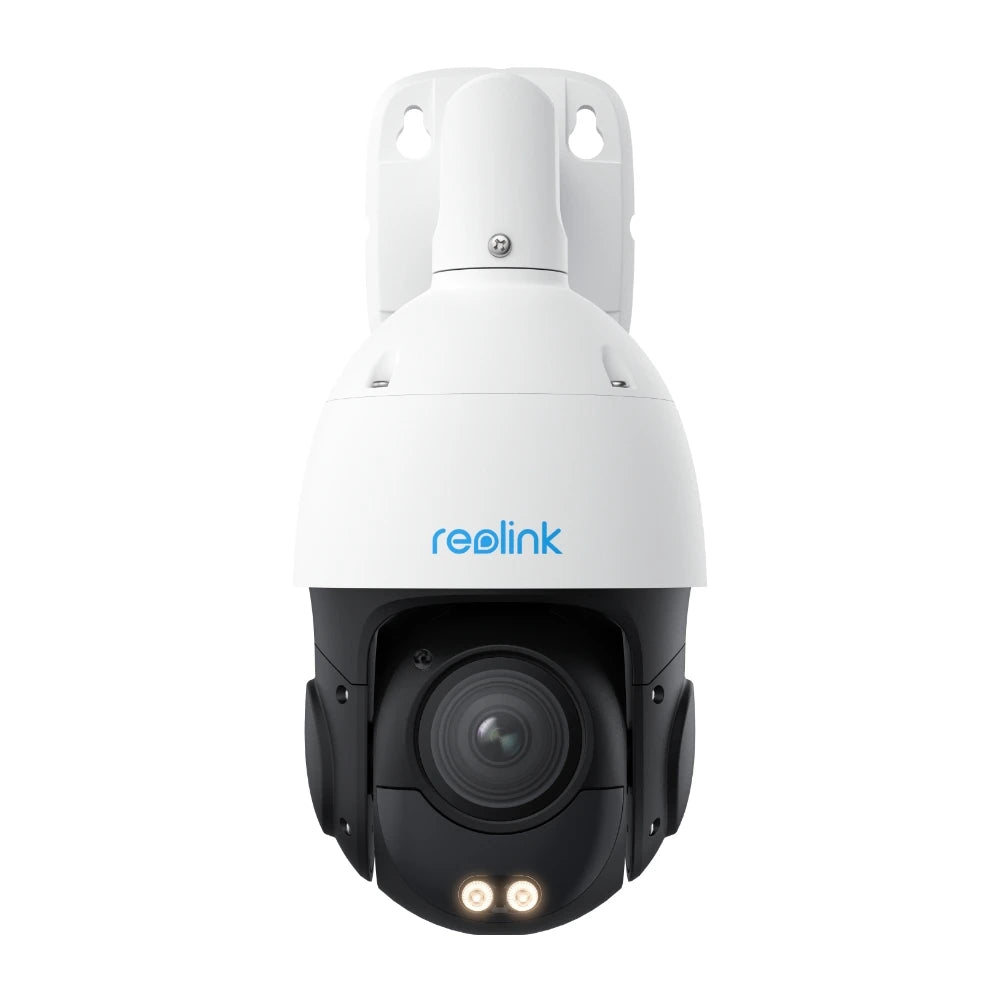

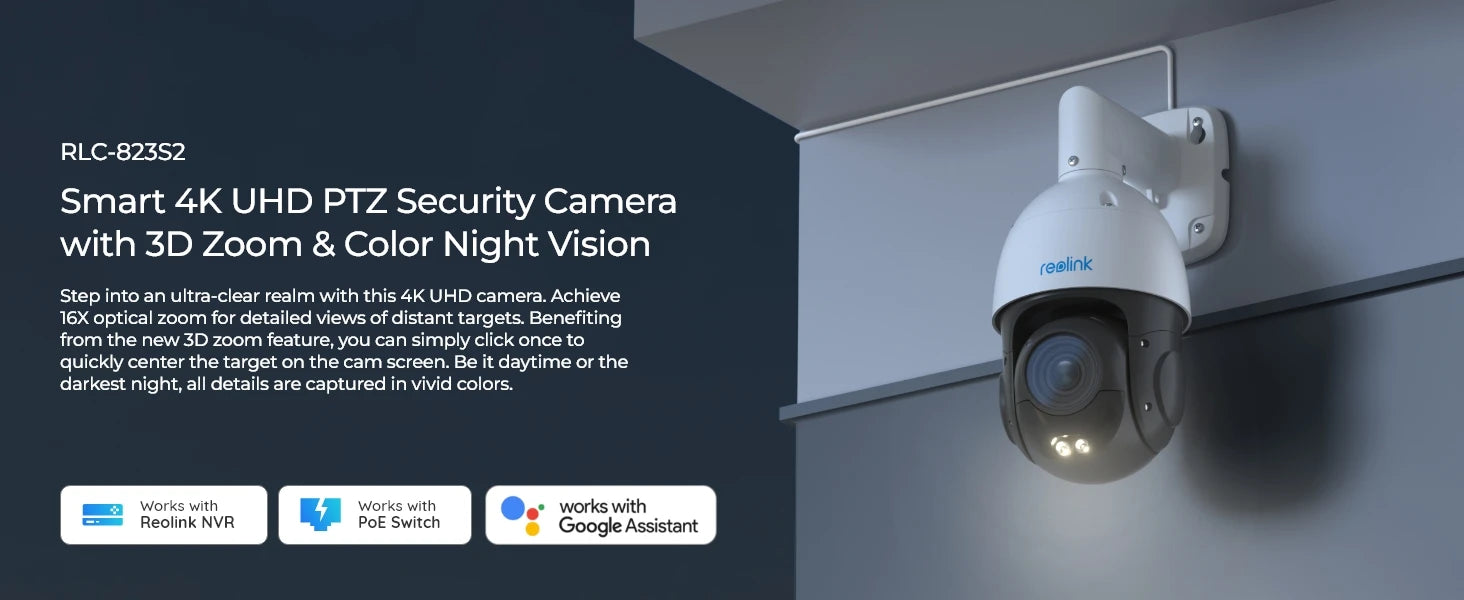

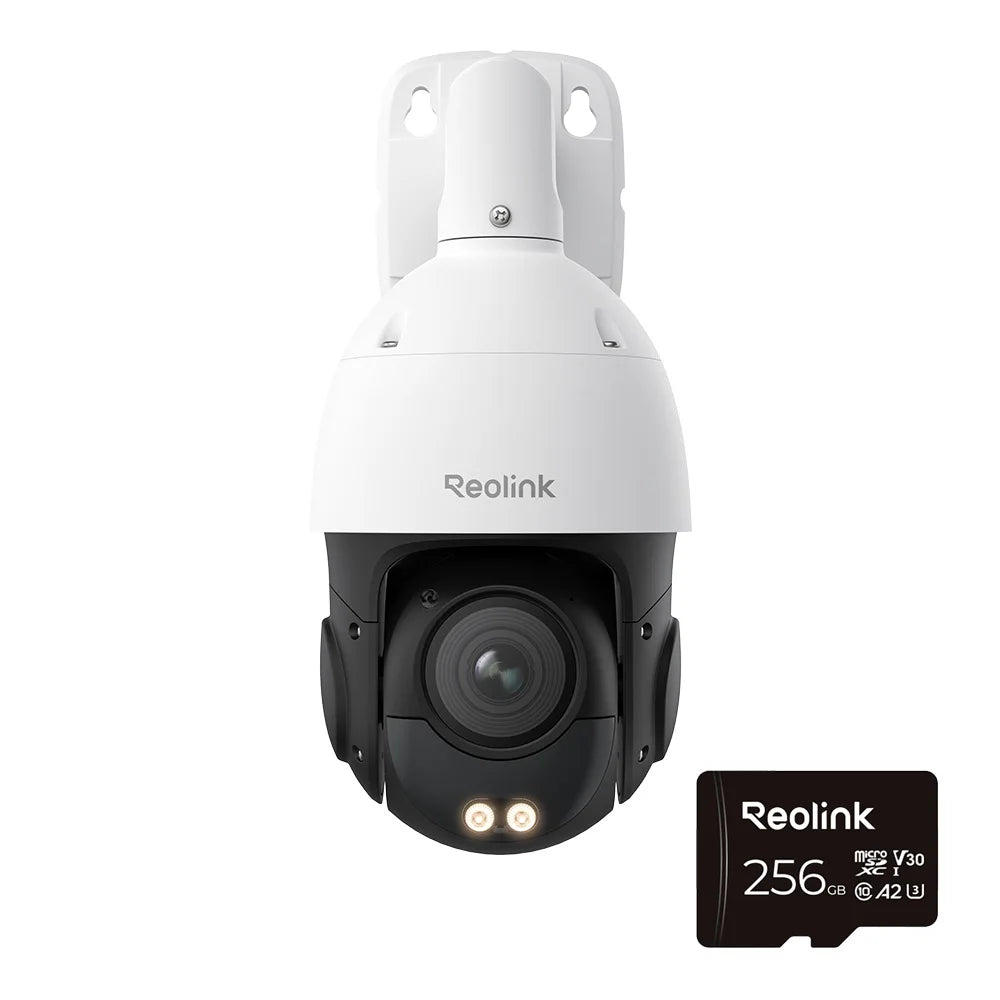

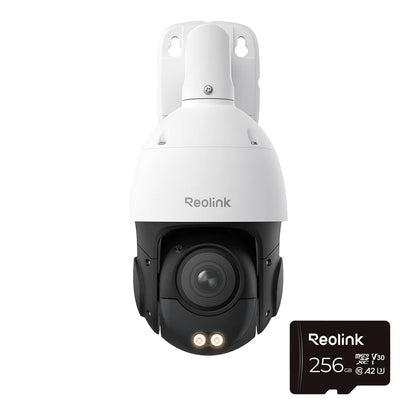

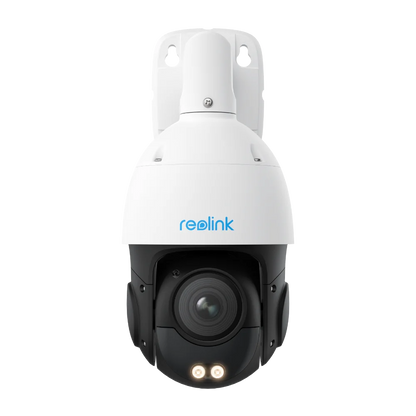

REOLINK 4K 8MP Dome PoE Security Camera 5X 3D Optical Zoom Pan & Tilt Auto Tracking Smart Detection 8MP Onvif Outdoor IP Camera
REOLINK 4K 8MP Dome PoE Security Camera 5X 3D Optical Zoom Pan & Tilt Auto Tracking Smart Detection 8MP Onvif Outdoor IP Camera
SKU:200000891:201440900#16X Zoom Add 256GB;200007763:201336099
Couldn't load pickup availability
SPECIFICATIONS
AI Functions: Pet Detection
Alarm Action: FTP Photo,telefon Alarm,Email Photo,Local Alarm
Alarm Type: telefon Alarm,Local Alarm,FTP Photo,Email Photo
App name: other
Audio In/Out: Built-in microphone and speaker
Audio Output: Two Way Audio
Auto Tracking: Yes
Brand Name: Reolink
Certification: CE,FCC,RoHS,weee
Color: WHITE
Color Night Vision: Yes,Yes
Connectivity: RJ45
DC Power: DC 12V/2A, <24W
Dimensions: 373x177x140mm (Ceiling Mount)
Dimensions (L x W x D)(mm): 195*103*56cm
FTP: Yes
High Definition: 8.0 Megapixels
Hign-concerned Chemical: None
IP Rating: IP66
IR Distance(m): 60M
Image Sensor: 1/2.8" CMOS sensor
Infrared Night Vision: 5X Zoom cam up tp 60 meters(196ft);16x zoom cam up tp 80 meters(260ft)
Installation: Normal,Wall Mounted,Pendant Mount
Internal Storage: None
Lens (mm): 2.7-13.5mm
Lens Quantity: Single Lens
Lens of 16X Zoom cam: f=5.3-86mm
Lens of 5X Zoom cam: f=2.7-13.5mm/Max F1.6
Local storage: Max. 256 GB (Micro SD card)
Megapixels: 8MP
Minimum Illumination(Lux): 100
Movement Range(Pan): 0°-360°
Movement Range(Tilt): other
Network: One 10M/100Mbps RJ45
ONVIF: Yes
Operating Humidity: 10% ~ 90%
Operating Temperature: -10°-60°,-10°C~+55°C (14°F~131°F)
Optical Zoom: other
Origin: Mainland China
POE: IEEE 802.3at, 48V, active
PT Angle (Max.): Pan: 360°, Tilt: 90°
Pan Speed: 1.4°-180°/s (configurable)
Power Consumption(W): <24W
Power Supply: With Poe
Power Supply(V): DC12V/2A & PoE (IEEE 802.3at)
Rechargeable Battery: None
Record Mode: Motion-triggered recording (default); scheduled recording, 24/7 recording
Resolution: 3840x2160(8 Megapixels)@25FPS
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: Omnivision
Shell Material: Metal
Smart Alarm: Motion detection; person/vehicle/animal detection
Smart Home: Google Assistant; Alexa
Smart home platform: alexa,Google Assistant
Special Features: Waterproof / Weatherproof
Style: PT Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Mac OS,Windows 10
TF Card: 256g tf card
Tilt Speed: 1.4°-56°/s (configurable)
Time Lapse: Yes
Video Compression: H.265/H.264
Video Compression Format: H.264,H.265
Viewing Angle : 100°
Weight: 2.34kg
Zoom: 4X,5X optical zoom & digital zoom;16X optical zoom & digital zoom
Zoom type: Optical zoom
is_customized: No
Compare Your Security Camera Products | |||
Model |
5X Zoom Cam |
16X Zoom Cam |
|
Picture |
|
|
|
|
Video & Audio |
Image Sensor |
1/2.8" CMOS sensor |
|
Resolution |
3840x2160(8 Megapixels)@25FPS |
||
Lens |
f=2.7-13.5mm/Max F1.6 |
f=5.3-86mm/Max F1.6 |
|
Video Compression |
H.265/H.264 |
||
Zoom |
5X optical zoom & digital zoom |
16X optical zoom& digital zoom |
|
Field of View |
Horizontal: 100°-31° |
Horizontal: 54.2°-3.6° |
|
Vertical: 55°-17° |
Vertical: 41.7°-2.1° |
||
Diagonal: 123°-39° |
- |
||
Infrared Night Vision |
Up tp 60m(196ft); |
Up tp 80m(260ft); |
|
Color Night Vision |
With spotlights: 2pcs/4w/4000K (Adjustable) |
||
Frame Rate |
Main stream: 2fps - 25fps (default: 25fps) |
||
Sub stream: 4fps - 15fps (default: 10fps) | |||
Code Rate |
Main stream: 2048Kbps - 8192Kbps (default: 6144Kbps) |
||
Sub stream: 64Kbps - 512Kbps (default: 256Kbps) | |||
Audio |
Two-way audio |
||
Power |
PoE |
IEEE 802.3at, 48V, active |
|
DC Power |
DC 12V⎓2A, <24W |
||
Interface |
Power Port |
DC power port |
|
Ethernet Port |
One 10M/100Mbps; RJ45 |
||
SD Card Slot |
Supports Max. 256GB microSD card |
||
Reset Button |
YES |
||
Audio In/Out |
Built-in microphone and speaker |
||
Pan & Tilt |
PT Angle (Max.) |
Pan: 360°, Tilt: 90° |
|
Pan Speed |
1.4°-90°/s (configurable) |
||
Tilt Speed |
1.4°-56°/s (configurable) |
||
Preset Points |
Suppots 1 guard position & up to 64 preset positions |
||
Patrol |
Supports 1 patrol; up to 16 presets per patrol |
||
Power-off |
YES |
||
Auto Tracking |
YES |
||
Software |
Browsers Supported |
Edge, Chrome, Firefox, Safari |
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
||
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, |
||
User Access |
Max. 20 users (1 admin & 19 user); |
||
|
Other Features |
Smart Alarm |
Motion detection;person detection; vehicle detection; animal detection |
|
Recording Modes |
Motion-triggered recording (default); Scheduled recording, 24/7 recording |
||
Time Lapse |
YES |
||
Smart Home |
Google Assistant; Alexa |
||
|
Working Environment |
Operating Temperature |
-10°C~+50°C(14°F~126°F) |
|
Operating Humidity |
10% ~ 90% |
||
Weatherproof |
IP66 |
||
Mechanical |
Dimensions |
373*177*140mm (Ceiling Mount) |
|
Weight |
2.34kg |
||
Warranty |
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/. |
|

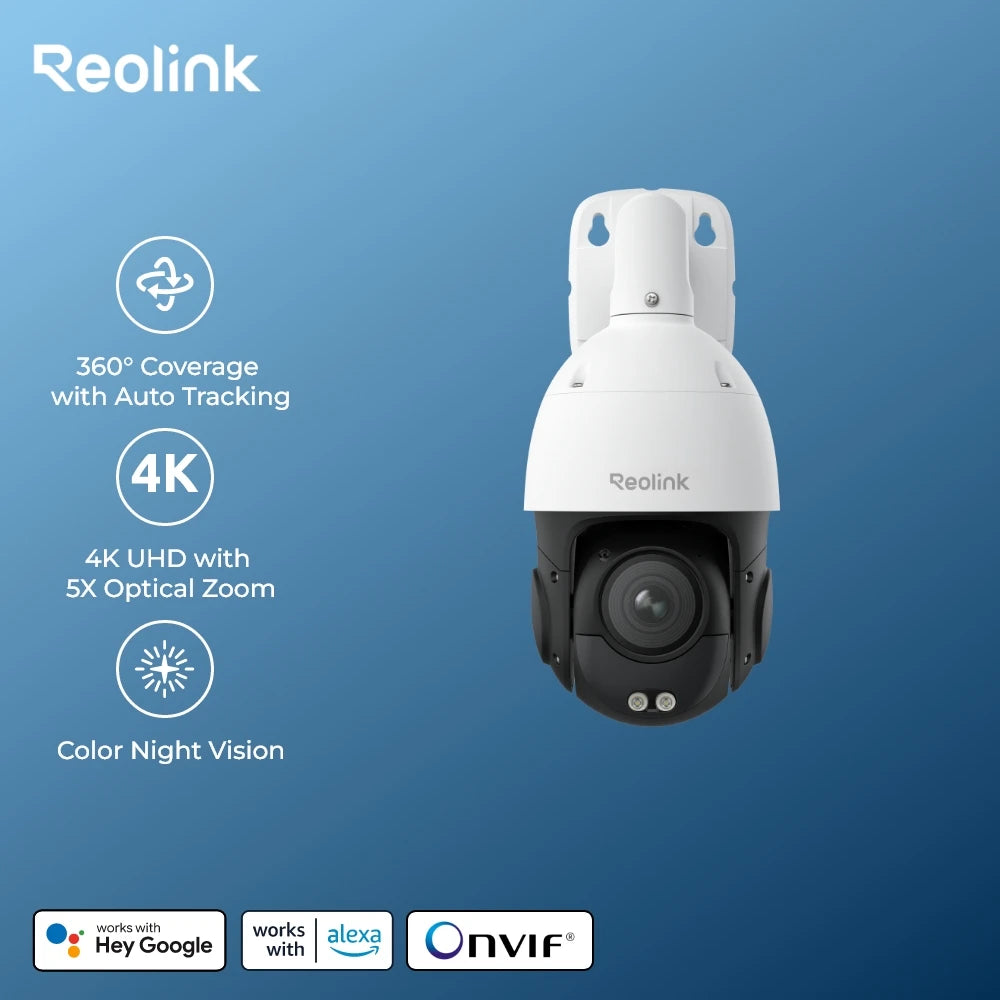

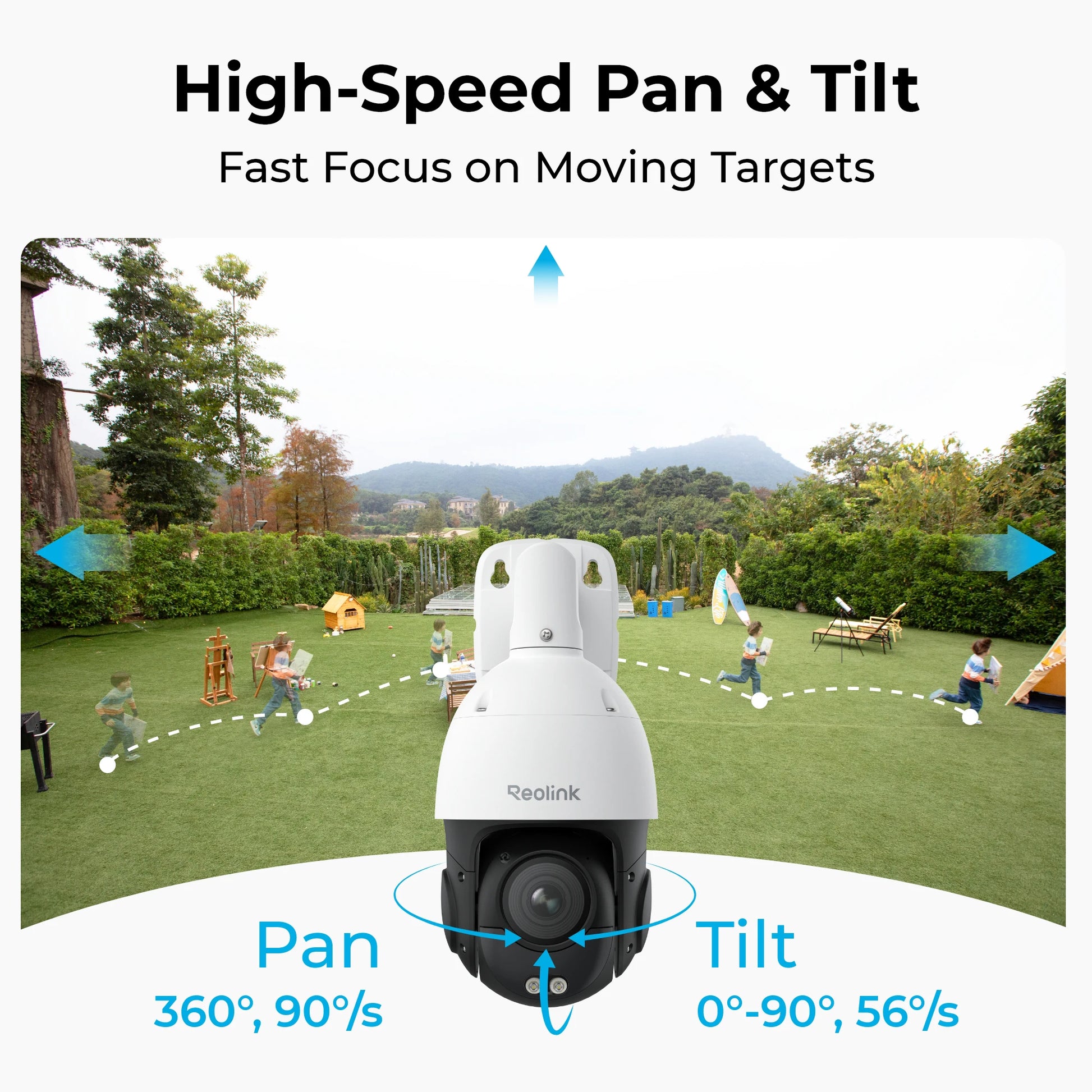

See All-Around with 360° Coverage
Experience complete surveillance from 360° pan and 90° tilt capabilities, complemented by adjustable motor speeds for precise control.
Auto Tracking
Once a person/vehicle/animal is detected, the camera will follow and keep it in sight for however it remains within the area, so you won't miss anything important.
The World Unfolds in Sharp Focus
Coming with a 5X optical zoom lens, the camera can capture sharper close-ups from farther away.
(The 16X Zoom cam support 16X optical Zoom)
Smart Detection
Accurately detect person/vehicle/animal movements for you, greatly reducing false alarms.
Customized Motion Zone
Decide which motion zone will be detected. You won't receive alerts from the areas you have erased.
Dual Warnings
Motion-triggered spotlights and custom siren will be activated to warn off intruders and alert you.
Two-Way Audio
Camera built-in mic and speaker, you can engage in real-time conversation.

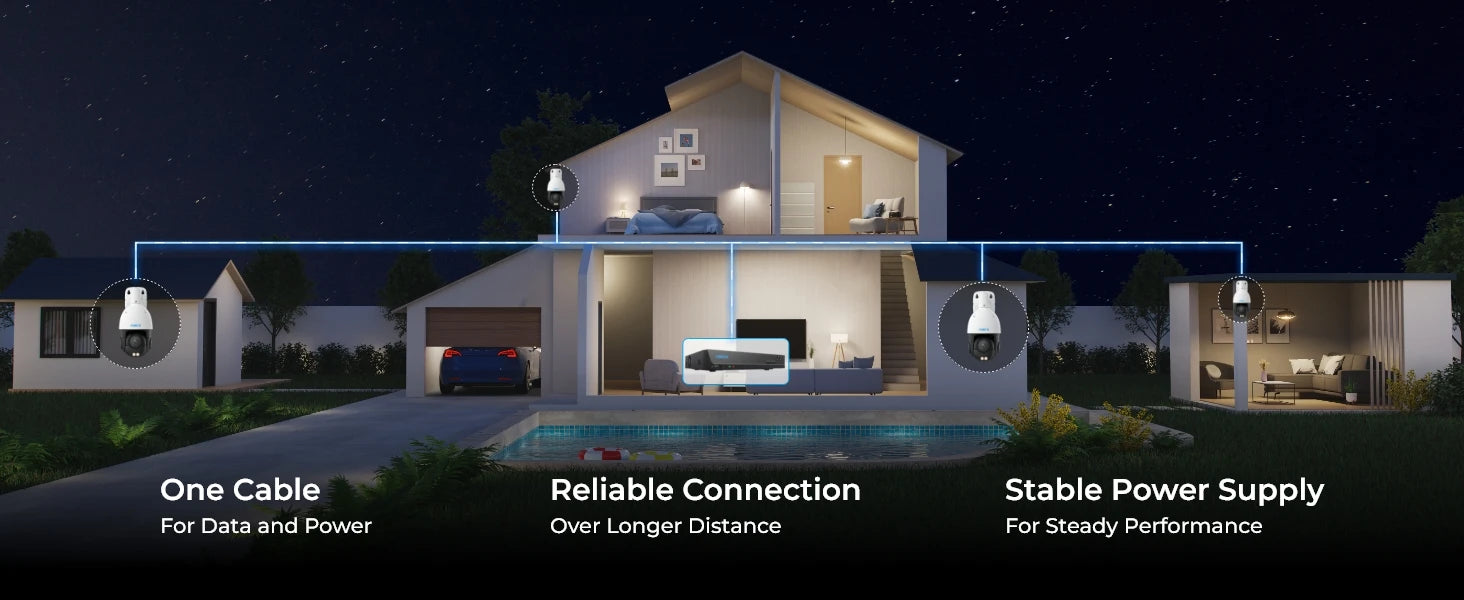

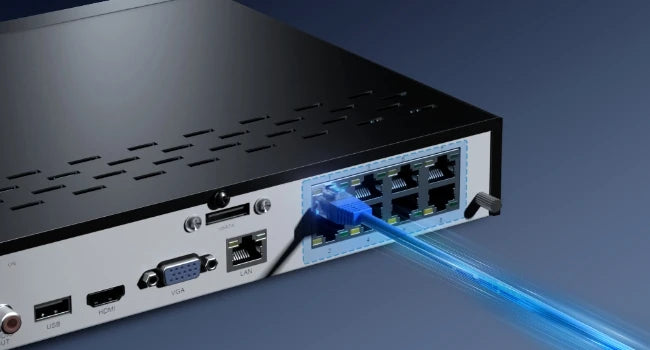

Note: When connected to RLN8-410 or RLN16-410, this feature is available only through the Reolink App/Client.Power over Ethernet Tech,Easy Setup
Equipped with crafted mounting brackets, this camera can be easily installed on the ceiling or wall.
See Through the Darkness
Camera features Color/Black & White Night Vision, catering to your diverse preferences.
DIY Your Security System
Build your personalized security setup with a variety of options provided by Reolink.
Remote Camera Access, No Subscription Needed
Supports max.12 devices to live stream at the same time (2 mainstreams & 10 substreams).
Stunning Time-Lapse Videos
Condense an entire day's events into captivating minutes. Enjoy mesmerizing transformations.
Versatile Storage Options
Camera supports 24/7 continuous, motion-triggered, or scheduled recording. Store footage on a microSD card, Reolink NVR, or FTP server.
\

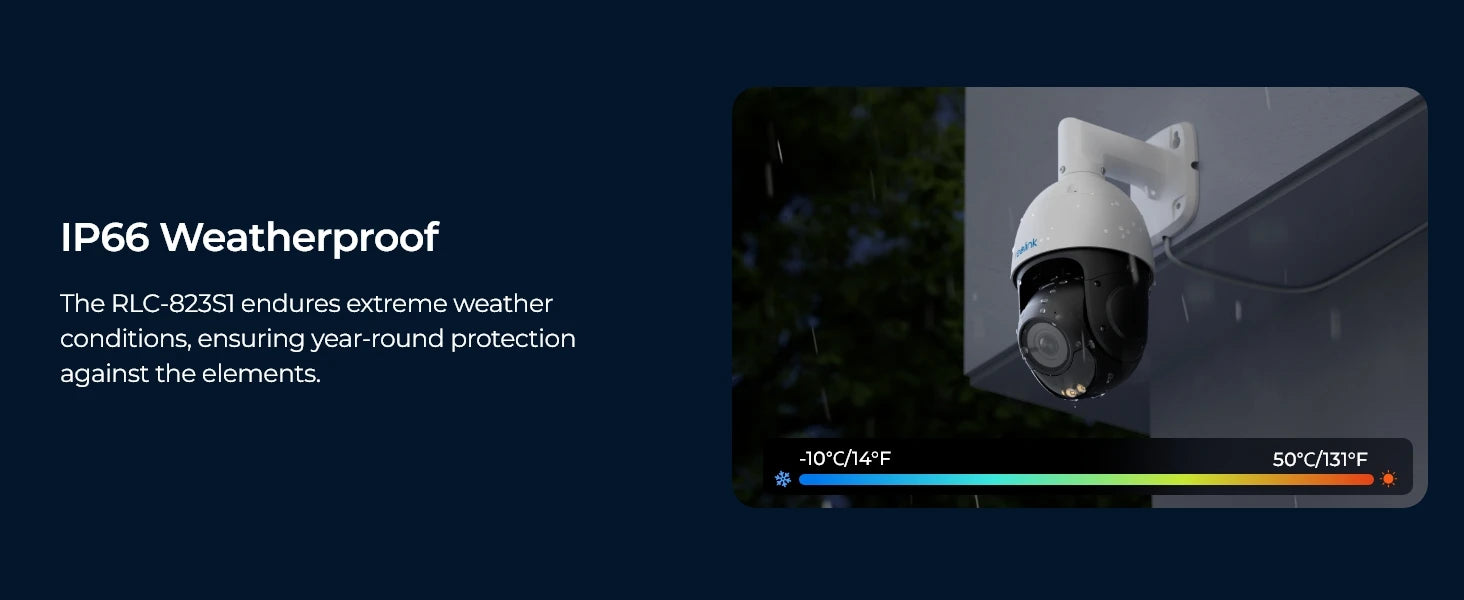

Reliable Guardian in Any Weather
*Built to be water resistant, this IP66-rated camera endures extreme weather conditions.
